• (4) speakers
• 120-MPH primary speedometer
• 12V pwr outlet
• Air conditioning
• Carpeted floor covering
• Cigar lighter
• Cloth 40/20/40 split bench seat
• Color-keyed instrument panel bezel
• Fixed long mast antenna
• Front/rear floor mats
• Mini floor console
• Passenger assist handle
• Passenger side visor vanity mirror
• Pwr locks
• Pwr windows w/driver one-touch
• Rear folding bench seat
• Rear underseat compartment storage
• Remote keyless entry
• Sentry Key theft deterrent system
• SIRIUS satellite radio (subscription required)
• Speed control
• Tilt steering column

• 136-amp alternator
• 3.42 axle ratio
• 8.0' pickup box
• Diesel exhaust brake
• Electronic shift-on-the-fly transfer case
• Electronically controlled throttle
• Four wheel drive
• Front stabilizer bar
• HD front shock absorbers
• HD rear shock absorbers
• Pwr 4-wheel anti-lock disc brakes
• Pwr steering
• Tow hooks
• Trailer tow wiring-inc: 4-pin connector

• Advanced multistage front airbags
• Child safety rear door locks
• Dual note horn
• Front height adjustable shoulder belts

6.7L I6 CUMMINS TURBO DIESEL ENGINE

• (STD)

2EG SLT CUSTOMER PREFERRED ORDER SELECTION PKG

• 6.7L I6 turbo diesel engine
• 6-speed manual trans

17" X 6" STEEL WHEELS

• bright wheel skins & center hubs (STD)

DUAL REAR WHEELS

• (STD)

6-SPEED MANUAL TRANSMISSION W/OD

• (STD)

TRAILER TOW GROUP

• class IV trailer hitch receiver
• 7-pin wiring harness

LT235/80R17E ALL-SEASON BSW TIRES

• (STD)

PROTECTION GROUP

• transfer case skid plate shield

POPULAR EQUIPMENT GROUP

• cloth 40/20/40 split bench seat
• (7) Infinity speakers
• front center seat cushion storage
• leather-wrapped steering wheel
• steering wheel audio controls
• 6-way pwr driver seat
• security alarm
• ash tray lamp
• glove box lamp
• auto dimming rearview mirror
• dual illuminated visor vanity mirrors
• underhood lamp
• overhead console w/storage bin
• map lights
• electronic vehicle info center & universal garage door opener
• rear 60/40 split bench seat

MONOTONE PAINT

• (STD)

MEDIUM SLATE GRAY, CLOTH 40/20/40 SPLIT BENCH SEAT

• 6-way pwr driver seat
• rear 60/40 split bench seat
• center seat cushion storage
• stain & odor resistant anti-static seat fabric

• 17' X 6' STEEL WHEELS -inc: bright wheel skins & center hubs (STD)
• 2EG SLT CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 6.7L I6 turbo diesel engine 6-speed manual trans
• 3.42 AXLE RATIO
• 4-Wheel Disc Brakes
• 6-SPEED MANUAL TRANSMISSION W/OD (STD)
• 6.7L I6 CUMMINS TURBO DIESEL ENGINE (STD)
• A/C
• ABS
• Adjustable Steering Wheel
• AM/FM Stereo
• AUTO DIMMING REARVIEW MIRROR
• Auxiliary Audio Input
• BRIGHT WHITE
• CD Player
• Child Safety Locks
• CHROME BODYSIDE MOLDING
• CHROME TUBULAR SIDE STEPS
• Cloth Seats
• Conventional Spare Tire
• Cruise Control
• Driver Air Bag
• Dual Rear Wheels
• DUAL REAR WHEELS (STD)
• FLAT FOLDING LOAD FLOOR STORAGE
• Floor Mats
• Fog Lamps
• FOLD-AWAY PWR TRAILER TOW MIRRORS
• Four Wheel Drive
• Heated Mirrors
• Immobilizer
• Intermittent Wipers
• Keyless Entry
• Locking/Limited Slip Differential
• LT235/80R17E ALL-SEASON BSW TIRES (STD)
• MEDIUM SLATE GRAY CLOTH 40/20/40 SPLIT BENCH SEAT -inc: 6-way pwr driver seat rear 60/40 split bench seat center seat cushion storage stain & odor resistant anti-static seat fabric
• MONOTONE PAINT (STD)
• Pass-Through Rear Seat
• Passenger Air Bag
• Passenger Air Bag Sensor
• Passenger Vanity Mirror
• POPULAR EQUIPMENT GROUP -inc: cloth 40/20/40 split bench seat (7) Infinity speakers front center seat cushion storage leather-wrapped steering wheel steering wheel audio controls 6-way pwr driver seat security alarm ash tray lamp glove box lamp auto dimming rearview mirror dual illuminated visor vanity mirrors underhood lamp overhead console w/storage bin map lights electronic vehicle info center & universal garage door opener rear 60/40 split bench seat
• Power Door Locks
• Power Mirror(s)
• Power Outlet
• Power Steering
• Power Windows
• PROTECTION GROUP -inc: transfer case skid plate shield
• Rear Bench Seat
• Requires Subscription
• Satellite Radio
• SECURITY ALARM
• Sliding Rear Window
• Split Bench Seat
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• TRAILER TOW GROUP -inc: class IV trailer hitch receiver 7-pin wiring harness
• Trip Computer
• Turbocharged
• Variable Speed Intermittent Wipers

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.26
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 20.2
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 74.9
• Tailgate Width (in): 60.6
• Cooling System
• Total Cooling System Capacity (qts): 29.5
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Exterior Dimensions
• Cab to Axle (in): 56.8
• Cab to End of Frame (in): 100.8
• Frame Width, Rear (in): 41.8
• Front Bumper to Back of Cab (in): 142.9
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.6
• Ground to Top of Frame (in): 33.8
• Ground to Top of Load Floor (in): 37.1
• Height, Overall (in): 79.1
• Length, Overall w/o rear bumper (in): 249.7
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 49.9
• Wheelbase (in): 160.5
• Width, Max w/o mirrors (in): 96.0
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Inboard Frame Rails
• Interior Dimensions
• Front Head Room (in): 40.8
• Front Hip Room (in): 64.9
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Passenger Capacity: 6
• Second Head Room (in): 40.0
• Second Hip Room (in): 64.6
• Second Leg Room (in): 36.7
• Second Shoulder Room (in): 66.7
• Steering
• Steering Ratio (:1), On Center: 13.4
• Steering Type: Pwr Recirculating Ball
• Turning Diameter - Curb to Curb (ft): 52.0
• Summary
• Body Code: 160.5" WB
• Body Style: Quad Cab 8' Box

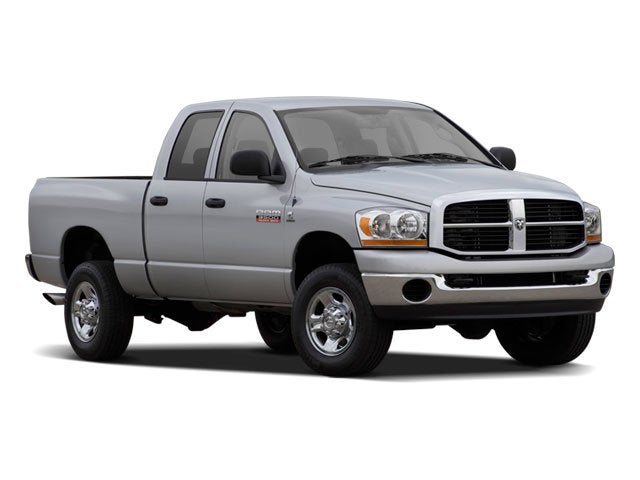

• Vehicle Name: Dodge Ram 3500
• Suspension
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 9350
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full floating
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 9350
• Suspension Type - Front: Live axle
• Suspension Type - Rear: Live axle
• Tires
• Front Tire Capacity (lbs): 3085
• Front Tire Order Code: TPY
• Front Tire Size: LT235/80R17E
• Rear Tire Capacity (lbs): 3085
• Rear Tire Order Code: TPY
• Rear Tire Size: LT235/80R17E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 3085
• Spare Tire Order Code: TBB
• Spare Tire Size: LT235/80R17E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2860
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11450
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1715
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11450
• Weight Information
• Curb Weight - Front (lbs): 4492
• Curb Weight - Rear (lbs): 2925
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9350
• Gross Combined Wt Rating (lbs): 19000
• Gross Vehicle Weight Rating Cap (lbs): 12200
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 6.0
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 6.0
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 6.0
